GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig
1set
MOQ
Negotiation
Price
GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-6A
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 100 set/year
Specifications
Condition: New
Drill Hole Diameter: Φ50-Φ200 Mm
Drilling Method: Rotary Drilling, Auger Drilling, DTH Hammer Drilling, Anchoring
Bit Type: Diamond
Voltage: As Yours
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Crawler Full Hydraulic Drilling Rig
Application: Deep Foundation Engineering, Soil Nailing, Anchoring, Pipe Support
Product Description

GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig



Advantage:

1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.

2. The drill rig has more positive speed stages.

3. A power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.

5. The power loss is small and the auxiliary time is short.

6. The drilling rig machine has an advanced structure and reasonable layout, which is convenient for maintenance, maintenance, and repair.

7. The crawler anchor engineering drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.

8. The drill rig reserves some functional interfaces in the hydraulic system and can expand the functions according to the technological requirements of different users.

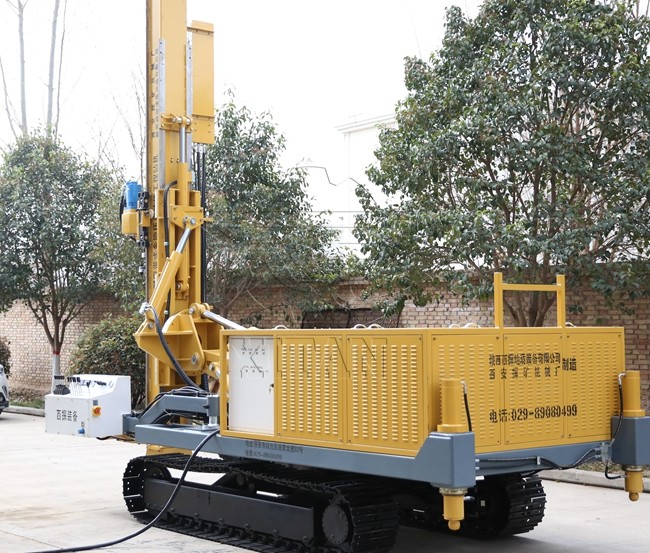

GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig 0



Usage:

GM-6A Jet Grouting Drilling Rig is mainly used for rotary drilling, auger drilling, pneumatic DTH  hammer drilling, follow-up drilling, and high-pressure jet grouting.



Application of Construction:

1. Tunnel pipe-shed support, advanced forecasting

2.  Deep foundation

3. Anchoring

4. Blastholes in open-air quarrying

5. Anti-floating anchoring

6. Geothermal pump holes

7. Hydrological wells

8. geological disaster control

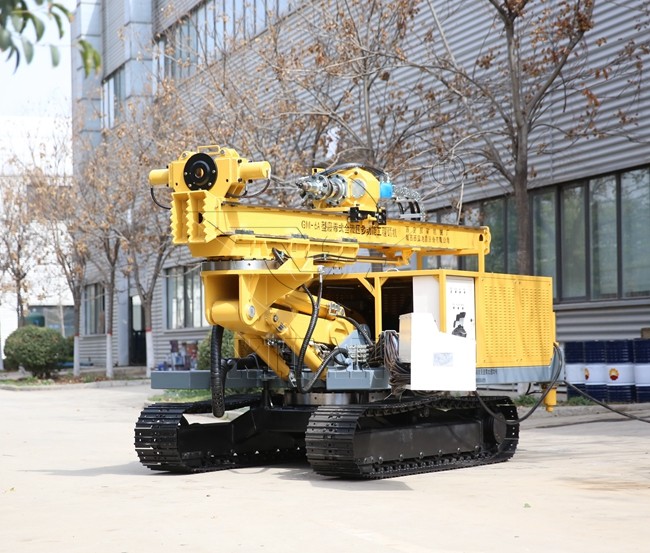

GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig 1

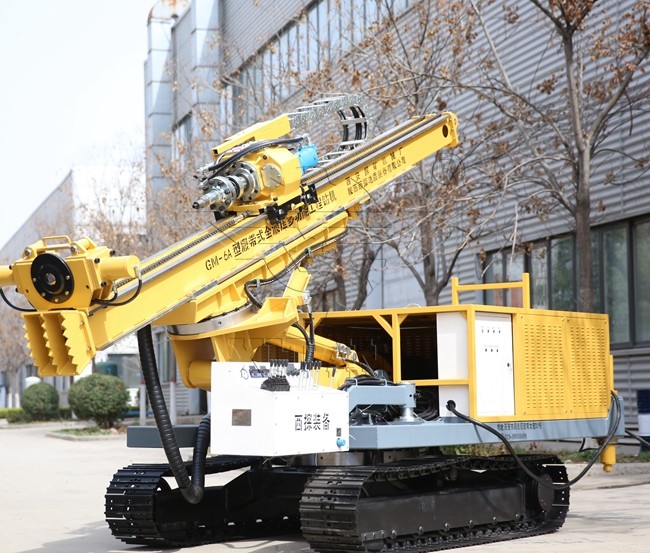

GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig 2



GM-6A Soil Nail Anchoring Jet Grouting Drilling Rig 3






Technical Data:

Mode GM-6A
Motor Motor 55kW Diesel 55kW
Weight 7.5t
Size 5000mm×2200mm×2300mm
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Feeding Force 35kN
Rotation Speed Low 0—60r/min
High 0-120r/min
Lifting Power 65KN
Torque 4000N.m-8000N.m
Borehole
Depth 50~200m
Diameter Φ50-Φ200mm
Drill pipe (diameter x length) (Φ50,Φ89)x3000mm
Horizontal Hole Height High 3100mm Low 2100mm
Column
Sliding Stroke 900mm
Pitch Angle 90°~ -10°
Swing Angle ±25°
