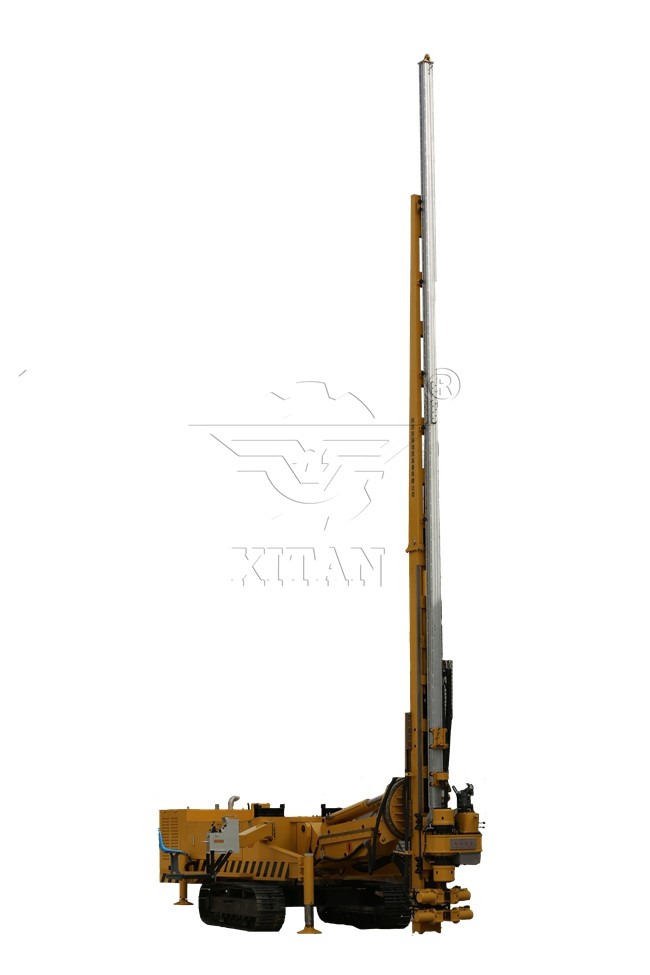

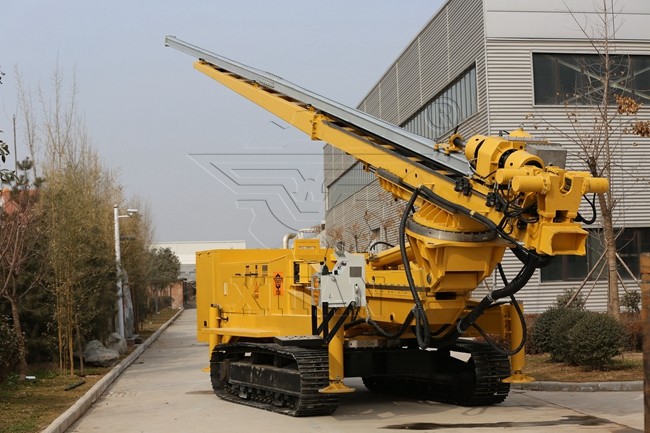

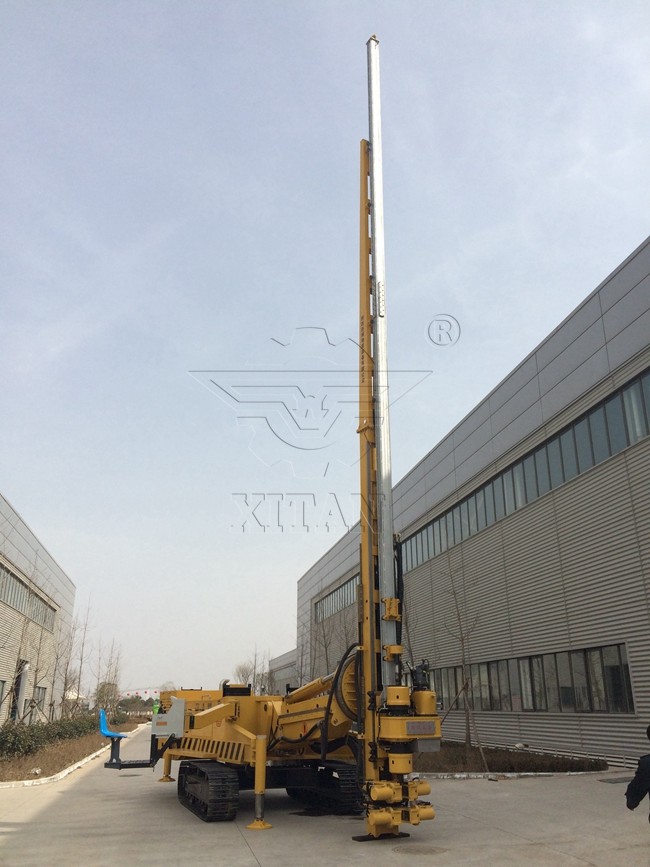

XL-3 Crawler Full-Hydraulic High-pressure Construction Drill Rig
Description:
XL-3 Crawler Full-Hydraulic High-pressure Construction Drill Rig is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.
Technical Data:
| Mode | XL-3 | ||||
| Diesel Engine | brand: Cummins | model No.:4BTA3.9-C125 | |||
| electric power: 93kw | speed:2200 r/mp | ||||
| Weight | 26t | ||||
| Size | Working (mm) | 9000×2800×19000 | |||
| Transmission (mm) | 8600×2800×3200 | ||||
| Speed | 1km/h | ||||
| Climbing Capacity | 15° | ||||
| Power Head | |||||
| Stroke | 4m | ||||
| Diameter | Ф94mm | ||||
| Feeding Force | 35kN | ||||
| Rapid Lifting | 0～8/0～11.8 m/min | ||||
| Lifting/Pressurizing Speed of Power Head | accurate speed adjustment of rotary jet:0.06～0.8/1.6 m/min | ||||
| Gear Control | Rotate Speed | Maximum Torque | |||
| 1 | 0～32r/min | 13215Nm | |||
| 2 | 0～132r/min | 3199Nm | |||
| 3 | 0～252r/min | 1681Nm | |||
| 4 | 0～500r/min | 946Nm | |||
| Rated Lifting Force | 120kN | ||||
| Added Pressure | 60kN | ||||
| Column | |||||
| Stretch | 800m | ||||
| Drill Tower Telescopic Distance | 1500mm | ||||
| Drilling Rig Height | 14m | ||||
| Mast Height | 12m | ||||
| Rob Length | 16m | ||||
| Main Swing Machine Swing Amplitude | -18°～18° | ||||
| Rig Swing Amplitude | -90°～90° | ||||
| Rotation Range of Rig Frame | 360°(hydraulic drive) | ||||
| Hydraulic Chuck | spring clamp, hydraulic open | ||||
