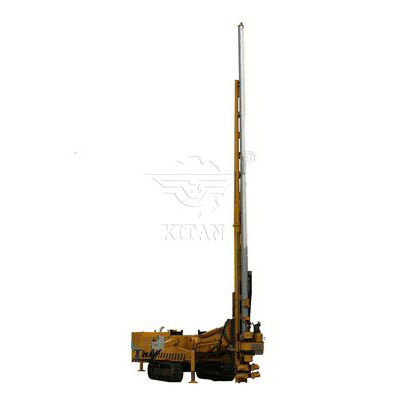

Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan
Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), and spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.
Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan is applicable to different construction the railways, highways, bridges, dam foundations, and various industrial and civil building foundation treatment and reinforcement of jet grouting construction; Anchorage engineering of foundation pit support; Matching with air compressor and pneumatic DTH hammer, it can be used for pipe drilling, general rotary spraying (swing spraying, fixed spraying) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.
Drilling rig advantage of Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan:
1. Multi-directional luffing mechanism, the multifunctional jet grouting drilling rig can realize multi-row and multi-angle drilling in one position, with strong adaptability.
2. Large rotation torque and long travel distance, can effectively improve drilling efficiency.
3. It’s convenient and quick to move that the Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan has a self-traveling function, with a 360° slewing device.
4. Shorten the drilling time up and down and reduce the labor intensity, the holes are equipped with hydraulic clamps and shackle devices.
5. The handles are reasonably arranged with flexible and convenient control, and equipped with a dynamic parameter display control system (patented technology), which can control various parameters such as the engine speed, oil temperature, water temperature, hydraulic system pressure, mud pump pressure, drilling depth, hole bottom pressure in time, easy to control drilling.
6. Saving the time of changing the drill pipe and improving the drilling efficiency, 12 m height of the mast can handle 16m standing rob, and the drill rob centralizer is added to facilitate the lifting of the drill tool.
7. The speed change of the power head adopts the combination of variable hydraulic motor and gearbox, the speed range is vast and reasonable, and the drilling rig has strong applicability to the stratum and different drilling processes.
8. The upper and lower hydraulic chucks adopt butterfly springs, which are clamping tightly, increasing stroke after loosening, and have the function of automatic slip wear compensation, which effectively improves the life of the spring and slips.
9. The main components of the hydraulic system of the Large Rotation Torque and Long Travel Distance Engineering Exploration Drilling Rig for Dam Foundations in Kyrgyzstan are imported from well-known brands, and the general components are selected from well-known domestic brands. The system is stable and safe for long service life.
10. Adopting direct-acting load feedback fine-tuning variable hydraulic system, power changes automatically with bearing load, high efficiency, low energy consumption.
11. The handles are arranged for flexible and convenient control and equipped with digital instruments, which show the engine speed, oil temperature, water temperature, hydraulic system pressure, and different parameters in time. It facilitates the control of drilling.
|Diesel Engine||brand: Cummins||model No.:4BTA3.9-C125|
|electric power: 93kw||speed:2200 r/mp|
|Rapid Lifting||0～8/0～11.8 m/min|
|Lifting/Pressurizing Speed of Power Head||accurate speed adjustment of rotary jet:0.06～0.8/1.6 m/min|
|Gear Control||Rotate Speed||Maximum Torque|
|Rated Lifting Force||120kN|
|Drill Tower Telescopic Distance||1500mm|
|Drilling Rig Height||14m|
|Main Swing Machine Swing Amplitude||-18°～18°|
|Rig Swing Amplitude||-90°～90°|
|Rotation Range of Rig Frame||360°(hydraulic drive)|
|Hydraulic Chuck||spring clamp, hydraulic open|
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
